Modules for the gas industry: efficiency, safety and quick installation
HEROSE is a global leader in the development and manufacture of valve and module packages for the industrial gas sector. For decades, our products have been synonymous with the highest quality, maximum operational safety and efficiency. They enable flexible, uninterrupted operation of your systems and reliably protect evaporator and gas pipeline systems from overpressure and overload. Our solutions ensure precise pressure control and contribute significantly to the optimisation of your processes. Trust in our experience, technical expertise and outstanding safety record – for the safe and economical operation of your industrial gas applications.
Shorter installation time
Pre-assembled and tested modules in a compact plug-and-play design reduce on-site installation and testing times by several days.
Efficient purchasing
All components from a single source: this simplifies ordering, speeds up processes and ensures that all components are available on time.
Easy identification and maintenance
Customised part numbers and P&ID documentation allow components to be identified quickly – for smooth maintenance.
Shorter lead times and lower storage costs
We take care of the entire ordering process for you. This reduces inventory levels, minimises administrative effort and saves costs.
Standardised modules
Our proven, standardised modules enable quick and safe installation – used over 10,000 times worldwide.

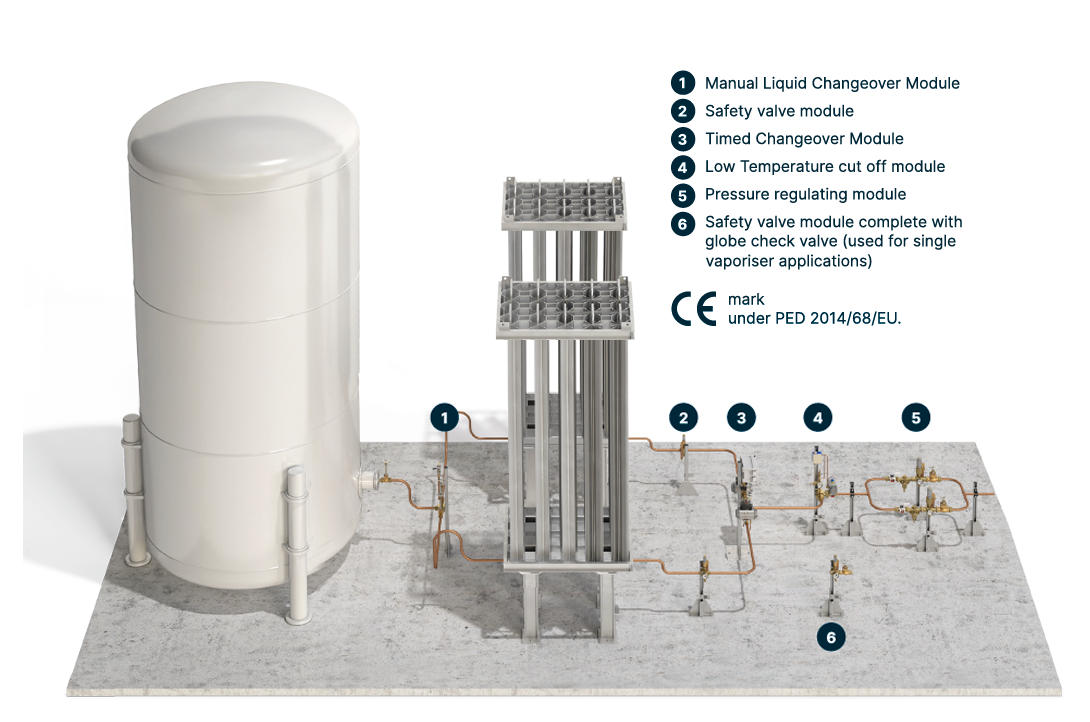

Six basic modules are available in a typical configuration for industrial gas systems
-
Evaporator shut-off module
Safe and flexible evaporator technology
The module allows one evaporator to be shut down for maintenance while the other continues to operate.
A safety valve protects the pipes against thermal expansion and is installed on a three-way ball valve for maintenance work. The gas loop ensures that only gas enters the safety valve.Max. working pressure: 40 bar
Operating temperature: –196 °C to +50 °C -
Safety valve module
Protection and ease of maintenance for evaporators
The safety valve module is designed for gas pipeline pressure protection. lt protects against excess pressure at a desired set point.
Max. working pressure: 40 bar
Working temperature: –54 °C to +50 °C -
Timed changeover module
Automatic changeover for safe operation
After a certain length of time, there is a risk of the evaporator icing up. lf this happens, heat transfer is no longer ensured. Timed changeover modules the flow between two evaporators, ensuring continuous and reliable operation.
Max. working pressure: 40 bar
Working temperature: –40 °C to +50 °C -
Low temperature cut off module
Safe materials and switch-off in low temperatures
For cryogenic applications, either copper or stainless steel is generally used, but occasionally carbon steel. lf carbon steel is used, and the temperature falls below -20°C, there is a risk of brittle fracture, which has serious consequences. In such cases - i.e. overload - the system automatically switches off.
Max. working pressure: 40 bar
Working temperature: –50 °C to +50 °C -
Pressure regulating module
Pressure regulation for safe use
This module reduces the pressure at the customer's point of delivery. While welding operations generally work with 6 bar, other applications require lower pressures. The pressure out of the tank is normally in excess of 10 bar. The regulator kit safety valve is sised to safely handle the regulator's maximum fault flow.
Max. working pressure: 40 bar
Working temperature: –34 °C to +50 °C -
Safety valve module complete with globe check valve
Protection and ease of maintenance for evaporators (used for single vaporiser applications)
Protects the evaporator against overload and prevents excessive pressure from system flow. A shut-off feature facilitates maintenance by completely cutting off inflow. A check valve ensures that no medium gets into the evaporator on the inlet side.
Max. working pressure: 40 bar
Working temperature: –54 °C to +50 °C
We have summarised all the information for you in a compact module flyer.
Further module solutions for special applications, including oxygen and hydrogen applications, can be found on the webpage HEROSE UK.
Read the history of the modules in an exciting valvescommunity article about our subsidiary in Doncaster.
Watch our video to learn how our safety modules can protect your plant and its personnel and support compliance with work regulations.
We are happy to assist you and advise you on your personal module selection. Please get in touch and arrange a personal consultation.
